The Qseals 1C-QSARLS16-0160-SSV-SCV is part of the QSARLS16 group and is designed for 16 mm shaft applications. It features a Silicon Carbide (SIC) rotary face paired with a Silicon Carbide (SIC) stationary face. This product uses Viton (FKM VIT) elastomers. The maximum recommended operating temperature is 205°C. It serves as a direct replacement for the AES N-S0SS-DDZDAZS-0160, AES N-S0SSU-DDZDAZS-0160, Grundfos 96066757, and 3 other alternatives.
Technical specifications
| Category | PUMP SPECIFIC |
|---|---|

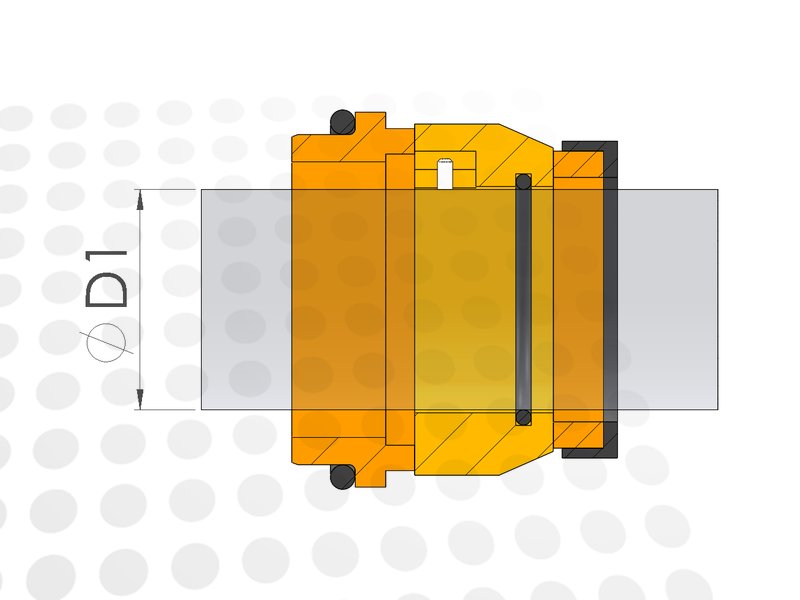

| Shaft size (D1) | 16 mm |
| Rotary face | Silicon Carbide (SIC) |
| Stationary face | Silicon Carbide (SIC) |
| Elastomers | Viton (FKM VIT) |
| Outer rotary face | Silicon Carbide (SIC) |
| Outer stationary face | Carbon (CAR) |
| Outer elastomer | Viton (FKM) |
| Temperature limit | 205 °C |
| Pressure limit | 20 bar |
Other size or material combination?
Search within the Qseals QSARLS16 product group.
Alternatives
The Qseals 1C-QSARLS16-0160-SSV-SCV is a direct 1-to-1 replacement for these alternatives, with superior quality, longer service life and excellent value for money.
| Brand | SKU |
|---|---|
| AES | N-S0SS-DDZDAZS-0160 |
| AES | N-S0SSU-DDZDAZS-0160 |
| Grundfos | 96066757 |
| Sarlin | 96066757 |
| Sarlin | YJ-34531 |
| Sarlin | YJ-34541 |
Applications
The Qseals 1C-QSARLS16-0160-SSV-SCV can be applied in the following installations and equipment, where it provides reliable sealing and optimal operational reliability.
| Brand | SKU |
|---|---|
| Gorman Rupp | JSV3B60-x2.7 |
| Gorman Rupp | JSVD60-X4 |
| Grundfos (Sarlin) | SV 032B L3 A |
| Grundfos (Sarlin) | SVX 014B L1B 503 |
| Sarlin | SV 032B L3 A |
| Sarlin | SVX 014B L1B 503 |
